Smart Power Optimizer - Thermal Plus - 800W

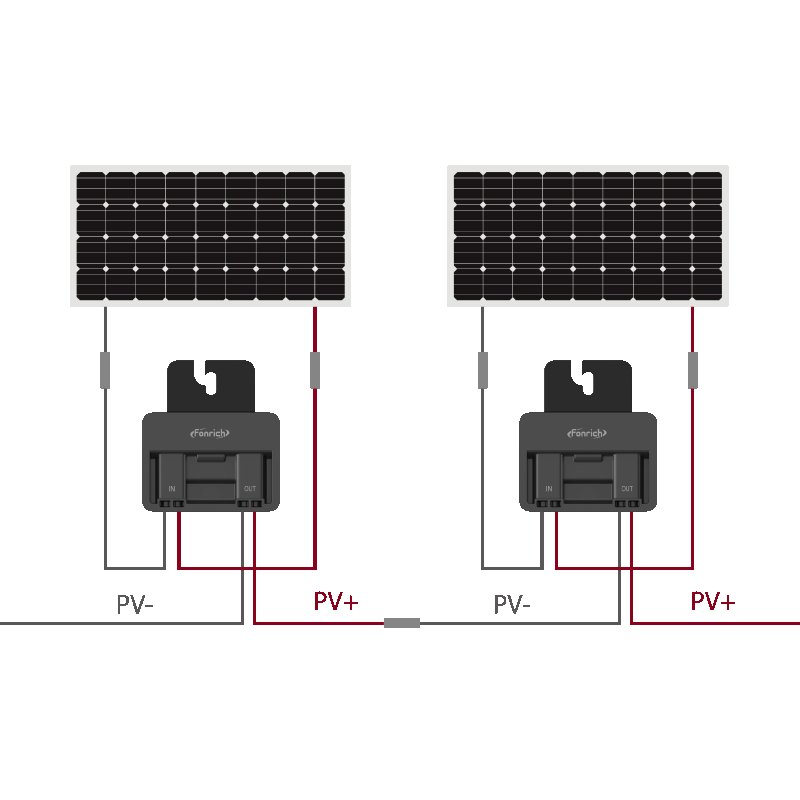

Fonrich solar power optimizer, also known as a PV optimizer or solar panel optimizer, maximizes energy output by minimizing losses from shading and mismatch. Designed for one optimizer per panel, it supports easy PV install and is ideal for both residential and commercial solar optimization. This enhanced version is equipped with an advanced heat sink for superior thermal management, ensuring higher efficiency and longer lifespan in high-temperature environments. Available in two models: one-to-one (single panel) and one-to-two (dual panel) configurations, offering greater flexibility for various system layouts.
Features & Advantages
Built with rapid shutdown and remote monitoring via SafeSolar App, this solar DC optimizer enhances system safety and management. Its long-distance communication and flexible design make it a preferred choice among solar optimizers and optimisers for solar panels globally. Fully compliant with NEC 2023, NEC 2020, NEC 2017 and UL 3741, it meets the highest industry safety and performance standards. The enhanced cooling model features an upgraded heat sink for improved heat dissipation, making it especially suitable for hot climates or high-load installations.
Product Advantages
Improved Power Generation Efficiency
Solve power generation losses caused by shading, different orientation and mismatching
Automatic/Manual Rapid Shutdown
Automatic protection or manual shutdown, to ensure maintenanceand fire safety
Supports Remote Data Monitoring
Snapshots include voltage, current, power, powergeneration, IV working point, temperature, etc.
1600m PLC Communication
Supports super-long communication distance
Technical Parameter
Model
FR-PVMB-C80H
Supported PV channel/modules
1/1
Maximum input power
800W
Operating voltage range
17~60Vdc
Max system Voc
1500Vdc
Installation method
Photovoltaic rail
Size (w/o cables and connectors)
120x132x45mm
Weight (including cables)
1000g
Safety standards
NEC 2017, 2020 & 2023 (690.12); IEC 62109-1; EN 62109-1; UL 3741
