Arc Fault Testing: A Critical Guide to Preventing Electrical Fires

Learn why arc fault testing is essential for electrical safety. This guide covers arc faults, the UL 1699 standard, AFCI devices, and how professional testing prevents fires and saves lives.

Electrical safety is a paramount concern in any home or business, and one of the most significant hidden dangers is the arc fault. These dangerous electrical discharges are a leading cause of electrical fires, making their detection and prevention a critical aspect of modern electrical maintenance. This guide provides a comprehensive understanding of arc fault testing, its importance, the standards that govern it, and the tools professionals use to keep electrical systems safe.

What Exactly is an Arc Fault?

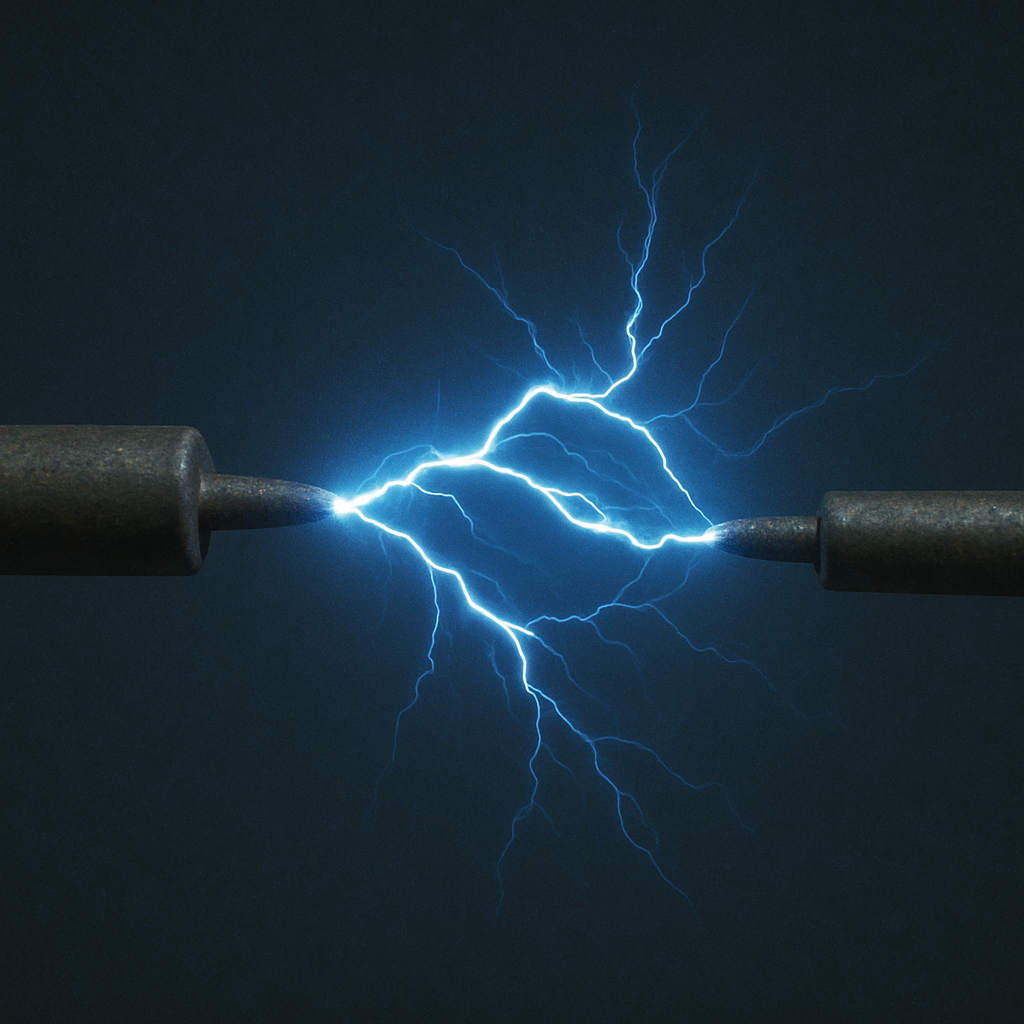

An arc fault is an unintentional and dangerous electrical discharge that occurs when current “jumps” an air gap between two conductors. Think of it as a continuous, controlled spark of electricity. This discharge generates extreme heat, often reaching thousands of degrees at the point of the arc, which can easily melt wiring insulation and ignite surrounding flammable materials like wood or dust.

Common causes of arc faults include:

• Damaged Wires: Nails from picture hangers, staples, or rodent damage can pierce wire insulation.
• Loose Connections: Wires that are not properly secured in outlets or switches can create gaps for arcing.
• Deteriorated Insulation: Old or cracked wiring insulation can break down, allowing current to escape.

The Two Main Types of Arc Faults

Understanding the different types of arc faults is key to understanding how protection devices work.

• Parallel Arc Faults: This is a high-current fault that occurs when a live (hot) wire comes into contact with another live wire, a neutral wire, or a ground wire. This creates a new, unintended path for the electricity, resulting in a powerful and dangerous arc. A classic example is a damaged extension cord where the hot and neutral wires touch.

• Series Arc Faults: This type is more subtle and occurs within a single conductor. It happens when there is a break or a loose connection in a wire, causing the current to “jump” across the gap to continue its path. Because the current doesn’t increase dramatically, traditional circuit breakers often fail to detect it, making it a particularly insidious hazard.

The Role of UL 1699: The Standard for Safety

To effectively combat the threat of arc faults, a clear standard for testing and performance was needed. This is where UL 1699, the “Standard for Safety for Arc-Fault Circuit Interrupters,” comes into play. This standard is the benchmark for the electrical industry, ensuring that any device claiming to protect against arc faults is up to the task.

UL 1699 outlines rigorous testing procedures that Arc Fault Circuit Interrupters (AFCIs) must pass. These tests simulate real-world arcing conditions to verify that the device can:

• Reliably detect both series and parallel arc faults.
• Quickly interrupt the circuit to stop the arcing before it can cause a fire.
• Avoid “nuisance tripping,” which is when an AFCI shuts off power for a normal, harmless electrical load (like a motor or dimmer switch).

A device that is UL 1699-listed has been independently tested and certified to meet these strict safety criteria, providing peace of mind that it offers genuine protection.

Arc Fault Circuit Interrupters (AFCIs): Your First Line of Defense

An Arc Fault Circuit Interrupter (AFCI) is a sophisticated circuit protection device designed specifically to detect the unique electrical signatures of dangerous arc faults and shut down the circuit before a fire can start. Unlike a standard circuit breaker, which only protects against overcurrents (overloads and short circuits), an AFCI uses advanced electronics to analyze the waveform of the electricity flowing through it.

When it identifies the characteristic patterns of an arc fault, it instantly trips, cutting off power to the affected circuit. AFCIs are now required by the National Electrical Code (NEC) in most areas of new homes, particularly in bedrooms, living rooms, and other common living spaces.

Why Professional Arc Fault Testing is Non-Negotiable

Installing AFCIs is a crucial first step, but it is not the end of the story. Like any safety device, AFCIs can fail or be installed incorrectly. This is why regular, professional arc fault testing is essential for maintaining a safe electrical environment.

The importance of testing boils down to four key areas:

• Proactive Fire Prevention: This is the primary goal. Testing verifies that your AFCIs are actively watching for and ready to stop arc faults. A non-functional AFCI provides a false sense of security and leaves your property vulnerable to one of the most common causes of electrical fires.
• Ensuring Code Compliance and Safety: Electrical codes exist for a reason: to save lives. Regular testing ensures your electrical system remains compliant with current safety standards, which is critical for insurance purposes, property resale, and, most importantly, the well-being of occupants.
• Protecting Your Electrical Investment: Arc faults don’t just pose a fire risk; the intense heat can damage sensitive electronics, appliances, and the wiring infrastructure itself. Testing helps prevent costly damage by ensuring faults are stopped immediately.

• Safeguarding Lives and Property: Ultimately, every aspect of arc fault safety is about protecting what matters most. A properly tested and functioning AFCI can be the difference between a minor electrical issue and a devastating, life-altering fire.













Professional AFCI Testers: The Right Tool for the Job

To accurately verify the function of an AFCI, electricians and safety inspectors rely on professional AFCI testers. These are not simple voltage testers; they are specialized tools designed to simulate the specific “noise” or signature of an arc fault without creating a dangerous real-world arc.

Benefits of Using a Professional AFCI Tester:

• Accurate and Reliable Verification: These testers generate a controlled signal that mimics a genuine arc fault, allowing the technician to confirm that the AFCI’s detection circuitry is working correctly. Simply pressing the “Test” button on the device itself only checks the mechanical trip mechanism, not the electronic detection capabilities.
• Efficiency and Thoroughness: A professional tester allows an electrician to quickly and methodically test every AFCI and AFCI-protected outlet on a circuit, ensuring comprehensive coverage in a fraction of the time it would take with other methods.
• Diagnostic Capability: Advanced testers can help electricians diagnose problems, such as identifying whether a nuisance trip is caused by the AFCI or a specific appliance on the circuit.

A Closer Look: The Branch/Feeder AFCI (BRAF)

While the term “AFCI” is often used generically, there are different types for different applications. The Branch/Feeder Arc-Fault Circuit Interrupter (BRAF) is a specific type of AFCI, typically installed in a circuit breaker panel. Its purpose is to provide arc fault protection for the entire branch circuit—the wiring that extends from the panel to the outlets and lights.

BRAF devices were among the first generation of AFCIs and are designed to offer comprehensive protection against both series and parallel faults throughout the circuit. Modern installations often use Combination Type AFCIs, which offer even more robust protection, but understanding BRAF devices is important for maintaining and inspecting older systems that are still code-compliant and safe when properly maintained.

An electrician using a modern AFCI tester to verify the safety of a residential electrical panel, ensuring devices like BRAFs are functioning correctly to prevent potential fire hazards.

The Future of Arc Fault Detection Technology

The field of electrical safety is constantly evolving. Innovations in arc detection technology are making AFCIs smarter, more sensitive, and better at distinguishing between dangerous arcs and harmless electrical noise. Future advancements are likely to include:

• Improved Diagnostics: AFCIs that can communicate with a home’s network to alert homeowners of a potential fault via a smartphone app before it becomes a critical issue.
• Reduced Nuisance Tripping: Ongoing research is focused on refining detection algorithms to make AFCIs even better at ignoring the electrical signatures of common household devices, improving user experience and trust.
• Integration with Smart Home Systems: The integration of AFCI technology with overall home energy management and security systems will create a more holistic and responsive approach to home safety.

Conclusion: Prioritizing Safety Through Testing

Arc fault testing is not an optional extra; it is a fundamental component of responsible electrical system ownership and maintenance. Understanding the nature of arc faults, the critical role of the UL 1699 standard, and the life-saving function of AFCIs empowers homeowners and property managers to make informed decisions. By investing in professional testing with the right tools, you are not just checking a box—you are actively taking a proven, effective step to prevent electrical fires, protect your property, and, most importantly, safeguard the lives of everyone within it.
